More Kiln Building
 More photos of the kiln in progress.  I actually finished building in mid February.  More photos will be coming in the next few days.



Oops I am sideways!


Cutting skews for the arch


Arch form in place





Arch form taken out and bricked up to top.


Angle bracing in place.  The frame is from my last kiln.


: - : comments(0) : - : posted by Andrew J Gemrich :
Kiln Building Continued
Slowly plugging along in one of the coldest winters  I have experienced here in Motegi.  It has been down to at least -10℃ almost every morning for a couple of weeks now.  I know it isn't very cold compared to many places but it sure makes working with mortar less enjoyable.  Usually it gets up to around 8℃ during the day most winters but no such luck this year, 3 or 4 at the most.

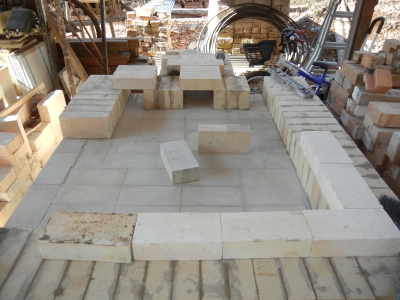

Here are some photos of the progress. First layer soldiered above the floor.

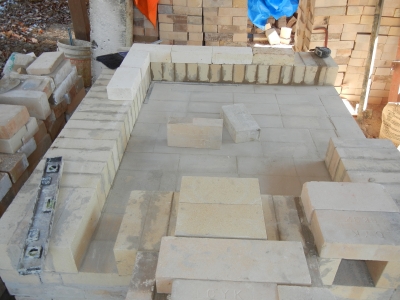

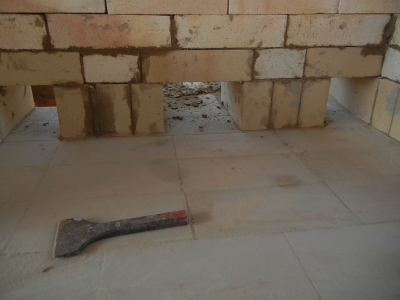

 Exit flue and burner ports. Flue dimensions are W17.5cm x H11.5cm

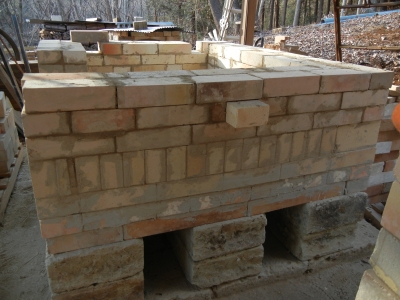

I decided to make it a side loading. The outside wall is heavy firebrick (sk32) and the inner wall is IBF (30).  All are used bricks.

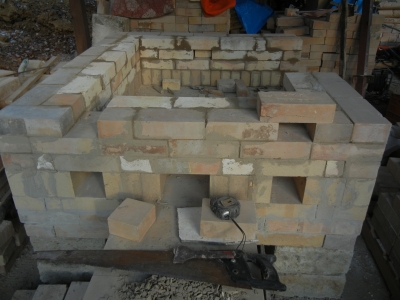

Lower spy hole

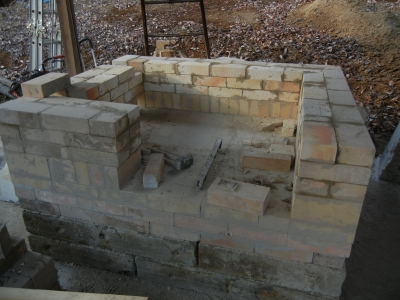

I have since added several layers.  About 5 more layers and the inside height will be approx. 1m. and time to start the arch.

: - : comments(0) : - : posted by Andrew J Gemrich :
Kiln Building
 After a long summer, a 2 month visit to the US, and much indecision, I have finally gotten started building my kiln.  Originally I had planned on building an anagama or split bamboo kiln, but between my schedule, my poor organizational skills, and trying to pin down an available carpenter to enlarge the kiln shed roof it had to be put off till spring. The kiln shed will get done sometime this winter.  so since I have been unable to fire since March, I need something quick.  I am making a small gas kiln (approx. 0.5 cubic meters).  The design is similar to a MN Flat top, but with a sprung arch instead.



I am using used bricks.  The first layer is hard fire brick (SK 32) without mortar on top of blocks made of Oyaishi, a local stone. They are about 90cm x 30cm x 15cm (about 60kg a piece).  I used 11.  The foundation is from my last kiln before March 11.





Layer 2 is insulating brick with mortar.  Since the bricks are used the bricks are not all the same size I needed to use more mortar than I would like to make everything level.





I have since started layer 3 which will be the floor (hard brick).  No photos yet.  The past couple of days it has been freezing which is not the best condition for mortar work.  I hope to get a little more done before the holidays get too busy.


: - : comments(0) : - : posted by Andrew J Gemrich :
Starting Over
 So I am ready to start blogging again after many difficult situations that have been visited upon us here in Japan. I spent most of March and April cleaning and repairing things in an around the house and workshop.  I also broke apart some damaged kilns to get bricks to build a new kiln.  My kiln was damaged in the quake and needed major repairs.  At first I thought I could get away with only fixing the arch but the closer I looked the worse it got.  I decided to tear it down and start anew. In mid-June a group of volunteers from the Mashiko Potters Relief Fund to help take it down.




In front of my kiln before taking it down.  It served me well for a little over eight years.



Starting to take it down.



Almost gone







Thanks Volunteers!


Now I just have to finish cleaning 2500 bricks (about half done) and I will be ready to start building again.



: - : comments(0) : - : posted by Andrew J Gemrich :
Exhibition at Gallery Kai
 Exhibition at gallery Kai in Nihonbashi, Tokyo starts today.
今日から東京日本橋のギャラリー開で個展を開催します。



Cafe & Gallery Kai
ギャラリー開
〒103-0022
中央区日本橋室町 1-13-14
tel/fax 03-3274-0255

http://www.kai.ac


: - : comments(0) : - : posted by Andrew J Gemrich :
Gallery Iwaki
 A Few photos from my current exhibition at Gallery Iwaki.




: - : comments(0) : - : posted by Andrew J Gemrich :
Exhibition at Gallery Iwaki
 I will be having an exhibition at Gallery Iwaki in Iwaki City, Fukushima. This  will be my 4th exhibition at the gallery.  It is a very nice and spacious gallery making for a good show.  I will be at the gallery on the weekends.  Please come and take a look.  After stop by the wharf fish market for some great seafood.



Oct. 30 (Sat) - Nov. 8 (Mon.) 2010  11:00 am -7:00pm (closed Wed.)

Gallery Iwaki   2-12-1 Izumigaoka, Iwaki City, Fukushima
Tel/fax 0246-56-0264

: - : comments(0) : - : posted by Andrew J Gemrich :
Pieces from the most recent firing
Here a few not so great photos of work from the firing last week.  In my hurry to get things ready for my upcoming show, I packed things up and realized I forgot to take pictures.  I will try to take pictures at the gallery.  The firing was reduced a bit more than usual but not a bad firing as a whole. The plates with industrial factory landscapes turn out darker than I had planned but it fits the subject matter well.














: - : comments(0) : - : posted by Andrew J Gemrich :
Industrial images and glazing
 So I am back.  After a too long and hot summer (72 days of over 30 degrees C which I avoided anything having to do with fire except maybe BBQ) I fired day before yesterday.  I have been continuing industrial and architectural motifs.  Here are some photos.  I will try to get some images of me unloading the kiln.  I have the sneaking suspicion I will get some surprises.  I used a lot of himalayan cedar as fuel since I could not get crytomeria (japanese cypress) and pine which I usually use.  cedar burns fast and give off lots of smoke, so even trying to fire the same I don't think it did.












: - : comments(0) : - : posted by Andrew J Gemrich :
Exhibition at Tradmeister Gallery
 I will be exhibiting at Tradmeister Gallery starting tomorrow, July 16, until August 12.  The work can viewed at the gallery or online though my homepage or Tradmc.com


Trad Meister Club
住所:〒188-0011 東京都西東京市田無町5-7-28
Address:5-7-28 Tanashi-sho Nishitokyo-shi Tokyo 1880011 Japan
TEL 042-452-6866 Fax 042-452-6870
e-mail info@stjapan.jp
: - : comments(0) : - : posted by Andrew J Gemrich :
